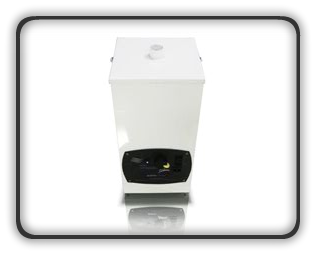

Quatro-Air Technologies - SPH Mini
| |
 |
|
 |
|
| |
|
| Compact Dust Collector |
|
Description |
|
|
|
- Capture fumes and particulate debris at source
- Multiple filter arrangement allows for disposable bag, HEPA cartridge and gas phase filter
- Quiet (52 dBA) with built in whisper quiet features
- Portable design can be installed anywhere
- Specialty chemical filters can be incorporated to deal with toxic and/or nuisance odors, contact us for custom applications
- Automated controls available
|
|
|
| SPHm1161B |
Basic |
| Height |
19"(483mm) |
| Width |
9"(229mm) |
| Depth |
9"(229mm) |
| Weight |
28lb (12.70kg) |
| CFM |
141m3 / min |
| W.C |
90" |
| # / Pallet by Plane |
N/A |
| # / Pallet by Boat |
N/A |
| |
|
| SPHm1163B |
Deluxe |
| Height |
19"(483mm) |
| Width |
9"(229mm) |
| Depth |
9"(229mm) |
| Weight |
28lbs (12.70kg) |
| CFM |
141m3 / min |
| W.C |
90" |
| # / Pallet by Plane |
N/A |
| # / Pallet by Boat |
N/A |
| |
|
| |
|
| Motor Type |
High Speed Turbine |
| Amps |
7 / 3 (SPHm1161B) |
| |
7 / 3 (SPHm1163B) |
| Voltage |
120 / 230 |
| * Red indicates 230Volt usage |
|
| |
|
| |
|
| Replacement Parts |
Part Number |
| All In One Filter |
AG162 |
| Bag Filter |
AG140 |
| Cartridge Filter |
F180 |
| Graphite Crystal Rods,2/pkg |
AB112 |
| Turbine Rubber Grommets |
H456 |
| Replacement Turbine |
AB001 |
| |
|
| |
|
| CE |
Certified |
| CSA |
Certified |
| HEPA Filters |
Available |
| |
|
|
|
|
|
| |
 |
|
 |
|
|
