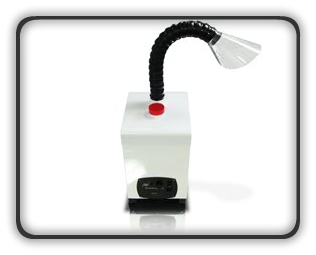

Quatro-Air Technologies - Solderpure
| |
 |
|
 |
|
| |
|
| Solder Fume Filtration |
|
Description |
|
|
|
- Capture SOLDER SMOKE &
FUMES at source, before they migrate throughout
the room
- Ideal for: SOLDER FUMES, FLUX,
WAXING FUMES, SOLVENT VAPORS and RHODIUM
- Extremely quiet (52 dBA)
- Optional Foot-pedal simplifies
operation (PN: H181-Universal, or PN:
H251-deluxe soft-touch)
- Multi-Flex Arm included
- Cyanide removal also
available
|
|
| |
| |
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
 |
 |
 |
 |
|
|
| F071 |
F074 |
F075 |
F072-GPC |
F077 |
|
| SPB-560-1B |
No
Capture Arm |
| Height |
20"(508mm) |
| Width |
13"(330mm) |
| Depth |
16"(407mm) |
| Weight |
45lb
(20.41kg) |
| CFM |
170 (288
m3 / h) |
| W.C |
3" |
| # / Pallet by Plane
|
N/A |
| # / Pallet by Boat
|
N/A |
| |
|
| SPB-560-1BG |
Unit Mounted
Arm |
| Height |
20"(508mm) |
| Width |
13"(330mm) |
| Depth |
16"(407mm) |
| Weight |
45lb
(20.41kg) |
| CFM |
170 (288
m3 / h) |
| W.C |
3" |
| # / Pallet by Plane
|
N/A |
| # / Pallet by Boat
|
N/A |
| |
|
| SPB-560-1BK |
Table Mounted
Arm |
| Height |
20"(508mm) |
| Width |
13"(330mm) |
| Depth |
16"(407mm) |
| Weight |
45lb
(20.41kg) |
| CFM |
170 (288
m3 / h) |
| W.C |
3" |
| # / Pallet by Plane
|
N/A |
| # / Pallet by Boat
|
N/A |
| |
|
| |
|
| Motor
Type |
Motorized Impeller
|
| Amps |
1.6 / 0.8 (SPB-560-1B-K) |
| |
1.6 / 0.8 (SPB-560-1R-K) |
| |
1.6 / 0.8 (SPB-560-1T-K) |
| Voltage |
120 / 230 |
| * Red
indicates 230Volt usage |
|
| |
|
| Replacement Parts |
Part
Number |
| 1/8" Gasket Roll
(40') |
H006 |
| Rubber Fan Isolators |
H454 |
| Pressure Gauge
|
E010 |
| Fuse |
E086 |
| Blower Motor
(120V) |
B116 |
| Blower Motor
(230V) |
B126 |
| Toggle
Switch |
E011 |
| Casters |
H042 |
| |
|
| |
|
| CE
|
Certified |
| CSA |
Certified |
| HEPA Filters
|
Certified |
| |
|
|
|
|
|
| |
 |
|
 |
|
|
