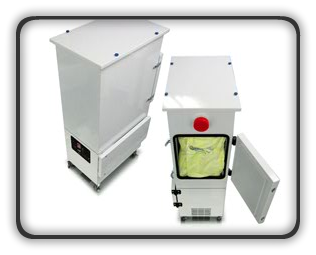

Quatro-Air Technologies - CSA
| |
 |
|
 |
|
| |
|
| Heavy
Duty Dust & Odor Removal |
|
Description |
|
|
|
- Designed for ALL heavy duty
applications (for high levels of debris &
odor)
- With large collection bag,
HEPA Filter & Deepbed Odor filters
- LaserBlue
Gel seal guarantees NO BYPASS
- Dual hi-speed turbine for high
suction, pressure & airflow
- Whisper quiet operation is
office friendly
- Designed for easy side access
panels for filter bag and motor
maintenance.
- Universal design allows for
2.5", 3", 4" inlet along with
discharge
|
|
| |
| |
| Various capture arm options
available |
 |
| CSA-626 |
2 Station
|
| Height |
45"(1140mm) |
| Width |
21"(540mm) |
| Depth |
13"(330mm) |
| Weight |
140lb (63.50kg)
|
| CFM |
282 (480m3
/ h) |
| W.C |
90" |
| # / Pallet by Plane
|
N/A |
| # / Pallet by Boat
|
N/A |
| |
|
| |
|
| Motor
Type |
High
Speed Turbine |
Brushless
Motor |
| Amps |
12.8 / 6.6 |
10 / 5 |
| Voltage |
120 / 230 |
120 / 230 |
| *
Red indicates 230Volt usage |
|
| |
|
| Replacement Parts
|
Part Number |
| Toggle Switch
On/Off |
E110 |
| Toggle Switch On/Off/Auto |
E035 |
| Blower plate
Isolators |
H307 |
| Brush & Pad
Replacement Kit |
AB024 |
| Filter
Gasket |
H296/37ft |
| Filter Access
Plate Gasket |
H006/50ft |
| Brush Type Motor
120V |
AB001 |
| Brush Type Motor
230V |
AB002 |
| |
|
| |
|
| CE
|
Certified |
| CSA |
Certified |
| HEPA Filters
|
Certified |
| |
|
|
|
|
|
| |
 |
|
 |
|
|
